GPU Resident Drawer
是一種在Unity中用於優化繪製調用的技術。繪製調用是Unity向圖形API發出的命令，用於在屏幕上繪製幾何圖形。然而，這些調用可以非常消耗資源，尤其是在繪製調用的準備過程中。在這個過程中，CPU會設置GPU的資源並改變其內部設置，這些設置總稱為渲染狀態。渲染狀態的更改，例如切換到不同的材質，是圖形API執行的最資源密集的操作。

測試環境:
Window 10

http://simcai.com/2015/11/29/Unity%E8%B5%84%E6%BA%90%E8%B7%AF%E5%BE%84%E5%8F%8A%E5%8A%A0%E8%BD%BD%E5%A4%96%E9%83%A8%E8%B5%84%E6%BA%90%E4%BB%8B%E7%BB%8D/

using UnityEngine;
using System.Collections;
using System;
/// <summary>
/// 兩隻手指的操控:相同方向的移動是旋轉,相反方向的移動是縮放
/// </summary>
public class DetectTouchMovement : MonoBehaviour
{
    const float pinchTurnRatio = Mathf.PI / 2;
    const float minTurnAngle = 10f;
    const float pinchRatio = 1;
    const float minPinchDistance = 1f;

    const float panRatio = 1;
    const float minPanDistance = 0;
    Quaternion desiredRotation;
    /// <summary>
    ///   The delta of the angle between two touch points
    /// </summary>
    static public float turnAngleDelta;
    /// <summary>
    ///   The angle between two touch points
    /// </summary>
    static public float turnAngle;

    /// <summary>
    ///   The delta of the distance between two touch points that were distancing from each other
    /// 兩個觸摸點之間進行了相互保持距離增量
    /// </summary>
    static public float pinchDistanceDelta;
    /// <summary>
    ///   兩隻手指距離
    /// </summary>
    static public float pinchDistance;
    public static bool mFingerUP=true;
    bool mRotate=false;
    bool mCanDistance=false;
    string mScale="30";
    string mRotationvalue="0.05";
    public Action<float> mScaleEven;
    static Touch mOldTouch1=new Touch();
    /// <summary>
    ///   Calculates Pinch and Turn - This should be used inside LateUpdate
    /// </summary>
    static public void Calculate ()
    {
        pinchDistance = pinchDistanceDelta = 0;
        turnAngle = turnAngleDelta = 0;

        // if two fingers are touching the screen at the same time ...
        if (Input.touchCount == 2)
        {
            Touch touch1 = Input.touches[0];
            Touch touch2 = Input.touches[1];
            mFingerUP=false;
            // ... if at least one of them moved ...
            if (touch1.phase == TouchPhase.Moved || touch2.phase == TouchPhase.Moved)
            {
                // ... check the delta distance between them ...
                pinchDistance = Vector2.Distance(touch1.position, touch2.position);
                float prevDistance = Vector2.Distance(touch1.position - touch1.deltaPosition,
                                                      touch2.position - touch2.deltaPosition);
                pinchDistanceDelta = pinchDistance - prevDistance;
                //dot>0=旋轉,dot <=0 縮放
                float aDot = Vector2.Dot( touch1.deltaPosition.normalized, touch2.deltaPosition.normalized );
                //Debug.Log("70 aDot="+aDot);
                if(aDot>0.8f)
                {//旋轉
                    turnAngle = Angle(touch1.position, touch2.position);
                    float prevTurn = Angle(touch1.position - touch1.deltaPosition,
                                           touch2.position - touch2.deltaPosition);
                    //turnAngleDelta = Mathf.DeltaAngle(prevTurn, turnAngle);
                    turnAngleDelta=prevTurn;

                    if(mOldTouch1.position.x > touch1.position.x)
                        turnAngleDelta*=-1f;

                    // ... if it's greater than a minimum threshold, it's a turn!
                    if (Mathf.Abs(turnAngleDelta) > minTurnAngle)
                    {
                        turnAngleDelta *= pinchTurnRatio;
                    }
                    else
                    {
                        turnAngle = turnAngleDelta = 0;
                    }

                    mOldTouch1=touch1;
                    pinchDistance = pinchDistanceDelta = 0;
                }
                else
                {//縮放
                    turnAngle = turnAngleDelta = 0;
                    Debug.Log("95 pinchDistanceDelta = "+pinchDistanceDelta);
                    // ... if it's greater than a minimum threshold, it's a pinch!
                    if (Mathf.Abs(pinchDistanceDelta) > minPinchDistance)
                    {
                        Debug.Log("pinchDistanceDelta = "+pinchDistanceDelta);
                        pinchDistanceDelta *= pinchRatio;
                    }
                    else
                    {
                        pinchDistance = pinchDistanceDelta = 0;
                    }
                }

            }
        }
        else
        {
            mFingerUP=true;
        }
    }

    static private float Angle (Vector2 pos1, Vector2 pos2) {
        Vector2 from = pos2 - pos1;
        Vector2 to = new Vector2(1, 0);

        float result = Vector2.Angle( from, to );
        Vector3 cross = Vector3.Cross( from, to );

        if (cross.z > 0) {
            result = 360f - result;
        }

        return result;
    }
    void Update ()
    {

        Calculate();
        if (Mathf.Abs(pinchDistanceDelta) > 0)
        { // zoom
            mRotate=false;
            if(mCanDistance)
            {
                float aValue=this.transform.parent.localScale.x+pinchDistanceDelta/float.Parse(mScale);
                Debug.Log("aValue="+aValue);
                this.transform.parent.localScale=new Vector3(aValue,1f,1f);
            }
            else
                mCanDistance=true;

        }
        else if (Mathf.Abs(turnAngleDelta) > 0)
        { // rotate
            Vector3 rotationDeg = Vector3.zero;
            rotationDeg.y = -turnAngleDelta*float.Parse(mRotationvalue);
            desiredRotation *= Quaternion.Euler(rotationDeg);
            mCanDistance=false;
            transform.rotation=desiredRotation;

        }

        if(mFingerUP)
        {
            mCanDistance=false;
            mRotate=false;
        }

        if(this.transform.parent.localScale.x<0.5f)
            this.transform.parent.localScale=new Vector3(0.5f,1f,1f);
        if(mScaleEven!=null)
            mScaleEven(this.transform.parent.localScale.x);
    }
}

using UnityEngine;
using System.Collections;
using System;
public class OnefingerDrag : MonoBehaviour
{
    public Action<Vector3> mDragEven;
    private  GameObject target;
    private  bool  isMouseDrag;
    private  Vector3 screenPosition;
    private  Vector3 offset;
    // Use this for initialization
    void  Start () {

    }

    // Update is called once per frame
    void  Update ()
    {
#if UNITY_EDITOR
        if  (Input.GetMouseButtonDown (0))
        {
            isMouseDrag =  true ;
        }
        if  (Input.GetMouseButtonUp(0))
        {
            isMouseDrag =  false ;
        }
#else
        if ( Input.touchCount > 0 )
        {
            isMouseDrag =  true ;
        }
        else
        {
            isMouseDrag =  false ;
        }

#endif
        if(isMouseDrag)
            GameObjectDragAndDrog();

    }

    //任意拖拽
    private  GameObject ReturnGameObjectDrag( out  RaycastHit hit)
    {
        target =  null ;
        #if UNITY_EDITOR
        Ray ray = Camera.main.ScreenPointToRay(Input.mousePosition);
        #else
        Ray ray = Camera.main.ScreenPointToRay(Input.GetTouch(0).position);
        #endif
        if  (Physics.Raycast(ray.origin, ray.direction * 10,  out  hit))
        {
            target = hit.collider.gameObject;
        }
        return  target;
    }

    //拖拽Updata
    private  void  GameObjectDragAndDrog()
    {
        RaycastHit hitInfo;
        target = ReturnGameObjectDrag( out  hitInfo);
        if  (target !=  null )
        {
            screenPosition = Camera.main.WorldToScreenPoint(target.transform.position);
            #if UNITY_EDITOR
            offset = target.transform.position - Camera.main.ScreenToWorldPoint( new  Vector3(Input.mousePosition.x, Input.mousePosition.y, screenPosition.z));
            #else
            offset = target.transform.position - Camera.main.ScreenToWorldPoint( new  Vector3(Input.touches[0].position.x, Input.touches[0].position.y, screenPosition.z));
            #endif
            if(mDragEven!=null)
                mDragEven(offset);
        }



        //    Vector3 currentScreenSpace =  new  Vector3(Input.mousePosition.x, Input.mousePosition.y, screenPosition.z);
        //    Vector3 currentPosition = Camera.main.ScreenToWorldPoint(currentScreenSpace) + offset;
        //    target.transform.localPosition =  new  Vector3(currentPosition.x, currentPosition.y, currentPosition.z);

    }
}

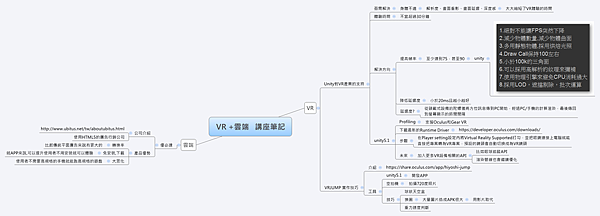

XMIND載點:
https://drive.google.com/open?id=0B6Xpdy0YQfa6TVRkVFpwSXlRVms

#region 要掛在有MESH RENDER的物件上才有用
                /// <summary>

[MenuItem("Edit/Play-Unplay, But From Prelaunch Scene %0")]
publicstaticvoidPlayFromPrelaunchScene()
{
if(EditorApplication.isPlaying ==true)
{
EditorApplication.isPlaying =false;
return;
}
EditorApplication.SaveCurrentSceneIfUserWantsTo();
EditorApplication.OpenScene(
"Assets/stuff/Scenes/__preEverythingScene.unity");
EditorApplication.isPlaying =true;
}
}

//记录欧拉角，单位为角度，可以在Inspector面板中设置
    public float ex, ey, ez;
    //用于记录计算结果
    float qx, qy, qz, qw;
